 FWA 2X6 filter wheel assembly without housing
FILTERWHEEL ASSEMBLIES



    FEATURES       PRICES      OPTIONS     DIMENSIONS    BLOCK DIAGRAM     FWA Block Diagram

Our unique filter-wheel system design  enables us to manufacture filter-wheel assemblies (FWAs) for a wide range of applications  requiring a variety of filter sizes and filter positions









FEATURES   TOP
Wide range of filter positions (2 to >8)
Wide range of filter sizes (<25mm to >125mm, round or square)
Accurate positioning to 0.05mm or better
DC motor or stepping motor drives available
Ready to operate, no computer interface required
Includes remote control box with filter-position readout
Filter mounting hardware included
Standard cable permits operation at distances up to 25' (7.5m)
Operate FWA from  distances of > 100' (30m) with optional cable
Optional FILTERŪ software available for automated filter sequences
Achieve automatic control by simply connecting to PC parallel port
Custom filter wheels & housings readily available
Complete documentation

Power supply: 12VDC wall transformer, 3.0  watts maximum

.

Our FWAs arrive fully operational, and do not require special software or computer interface use.  The remote filter selector and position are part of the FWA control box (see  FWA block diagram ),  which may be located up to >100' from the filter wheel (standard cable length is 25'). Our PC-based FILTERŪ  software is  an option that allows the user to fully automate complex filter sequences and dwell time routines via a PC parallel port.

Our standard FWAs accommodate 1" (25mm) or  2" (50mm)  square or round  filters, in  six- or eight-position versions.  We also offer a wide variety of custom FWA configurations covering filter sizes from <25mm to 125mm, either square or round, or round only (the latter option results in a substantially  smaller wheel and package size, see DIMENSIONS).  The number of filter positions in a given wheel can range from 2 to >8,  although if more than 8 filters are needed, it may save space and be more economical to use two or more FWAs in series.

Our FWAs are available with sturdy housings constructed of aluminum alloy, or in their basic open configuration for adaptation to the user's equipment.

TOP

PREVIEW OF SOME BASIC FWA DIMENSIONS TOP
(This is only a sampling, other filter sizes and combinations available)

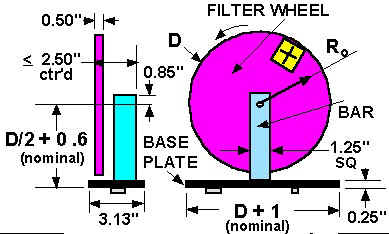

Table provides dimensions as a function of filter size, shape (round  or square), and number of filter positions, using attached diagram as reference.   Dimensions ( in inches unless noted) are approximate, and may vary depending on  requirements of each system.    Ro is radial distance to the center of filters.

NOTE: Wheels for square filters will also accommodate round filters.

*NOTE:  Filter wheels for round filters only are included below for comparison, but are are considered  special order at this time due to limited demand.

FILTERSIZE

 1.00(25mm)   1.00(25mm) 2.00(50mm) 2.00(50mm)

SHAPE

 ROUND* SQUARE ROUND SQUARE

NUMBER

      Ro            D      Ro            D      Ro            D      Ro            D
4

   0.83

 2.80 1.17 3.70 1.54 5.21 2.17 6.86
6 1.18 3.49 1.62 4.56 2.18 6.49 2.98 8.42
8 1.54 4.21 2.04 5.40 2.85 7.83 3.75 9.92
10 1.91 4.95 2.47 6.23 3.53 9.18 4.51 11.41

















FILTER-WHEEL PRICES   TOP
STANDARD FILTER WHEEL ASSEMBLIES
D x N = filter size (in inches) x number of positions.     Allow clearance of  3.13"  (80mm) along optical axis when using housing  (also see DIMENSIONS)

Model No.

 D x N Basic FWA With
housing		 Dimensions with housing (in.)
FWA-1X6 1.00 x 6 $1600.00 $1850.00 3.13 x 5.5 x 7.0
FWA-1X8 1.00 x 8 $1800.00 $2050.00 3.13 x 6.5 x 7.8
FWA-2X6 2.00 x 6 $2100.00 $2400.00 3.13 x 9.0 x 10.5
FWA-2X8 2.00 x 8 $2350.00 $2700.00 3.13 x 10.25 x 12.0

Includes 25' DB-9MF  shielded cable, control box, power supply (12VDC, 500ma), and mounting hardware for filters. Standard FWAs listed above accommodate both round and square filters up to 10mm thick. We do not include filters, but can suggest suppliers for a variety of applications.
















OPTIONS  TOP

FWA-DB50 50' (15m) DB-9MF control cable $45.00
FWA-DB100 100' (30m) DB-9MF control cable $75.00
FWA-FILTERSW FILTERŪ Software for PC parallel port $50.00
FWA-DB25 6' DB-25 Cable to PC parallel port $15.00
  Custom filter wheel assemblies Price on Request

All prices are FOB Tucson, AZ USA. Terms available to institutions. Custom FWA systems require 50% advance payment with order. Delivery for standard FWAs is 3-4 weeks ARO. Custom FWAs 4-8 weeks, or longer.
